Celvin Chemiluminescence Imaging System

Overview

Get out of the dark

Chemiluminescent Imager for Western Blots

Tired of constant trips to the darkroom while imaging your chemiluminescent blots? Take a look at the new Celvin, the easy-to-use benchtop chemiluminescent imager.

Superior camera technology, a plug-and-play interface, and a small footprint make the Celvin an attractive choice for documenting your Westerns — and it’s surprisingly affordable, too. The Celvin fits into any laboratory.

Sensitive Imaging

The Celvin features a double stage, peltier-cooled 16 bit scientific grade camera by biostep®. The cooling, high quality CCD chip and dark chamber result in an extremely low background. The treated blot is positioned directly above the camera on a glass plate, ensuring perfect focus on the blot and superior data acquisition. Exposures can be up to 24 hours long, for detection of very faint bands. Cameras are available at resolutions up to 8.3 megapixels with optional binning of up to 6×6 pixels.

Ease of Use

Image acquisition is controlled through an easy, touch-screen interface. Capture your chemiluminescence data, and then use the dimmable white light illuminator to record the position of colorimetrically-stained molecular weight standards — without even touching the blot in between. Once your image is in hand, the user-friendly image processing software makes data analysis simple. During image acquisition the lid automatically locks down creating a “mini-darkroom” that cannot be accidentally opened. Image blots for hours without worrying about data loss.

Compact and Affordable

The elegant design enables a small footprint about the size of a magazine. The Celvin will fit most anywhere in your laboratory. The low price includes the intuitive 1D gel and blot imaging software.

Cost Savings

Not only is the Celvin convenient and compact, it also requires no consumables to operate. No more X-ray film to buy, and no more developer reagents — all you need is your treated blot.


Download the Celvin Chemiluminescent Imager brochure.


Celvin

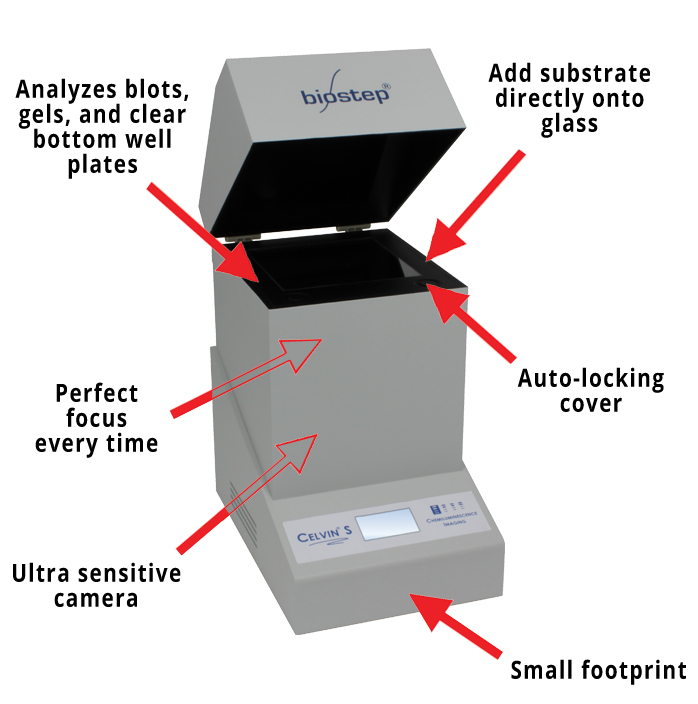

Features

The Celvin® chemiluminscent imaging systems provide the following benefits.

  • Extremely easy to set up and use
  • Small footprint, 24 x 36 x 42 cm (L x W x H)
  • Ultra sensitive CCD camera
  • Resolution and sensitivity can be individually adjusted
  • Place substrate directly onto glass
  • Analyzes blots, gels, and clear bottom well plates
  • No focusing required
  • Auto-locking lid during image acquisition
  • One-hand operation for image acquisition
  • Storage of the acquisition settings in individual, application-dependent methods
  • Acquisition of image series for signal reinforcements
  • Comfortable and automatic handling via user-friendly software
  • Excellent value
  • Two year warranty

Models

Which Celvin is right for you?

Model CCD Notes
Celvin S 830 8.3 Mpixel full frame CCD, images up to 14 x 12 cm. This model has the finest resolution and also the lowest cost model. However, with the smallest pixels, it is less sensitive than the other models.
Celvin S 420  4.2 Mpixel interline CCD, images up to 14 x 14 cm. This model is a nice balance between cost and sensitivity, making it the most popular model.
Celvin S 160 1.6 Mpixel full frame CCD, images up to 12 x 8 cm. With the largest pixels, this model is our 2nd most sensitive model.
Celvin S 320 3.2 Mpixel full frame CCD, images up to 13 x 9 cm. Our most sensitive model.

×
×
