Checkit Recorder


The Checkit Recorder documents Checkit Go test results, by capturing an image and analysis of the image to provide quantitative results. The image, the data, and a statistical analysis can be read on screen, or downloaded as a report.

Use the distilled water dye solution that comes with the Checkit Go cartridges, or use optional dye pellets for suspension in your sample liquid. The Checkit system measures or validates the pipetted volumes of your automated liquid handler robot. The Checkit system works with most typical sample liquids. It is not restricted to distilled water or viscous dye solutions. Very accurate measurements take just 10 seconds and no expensive equipment is needed.

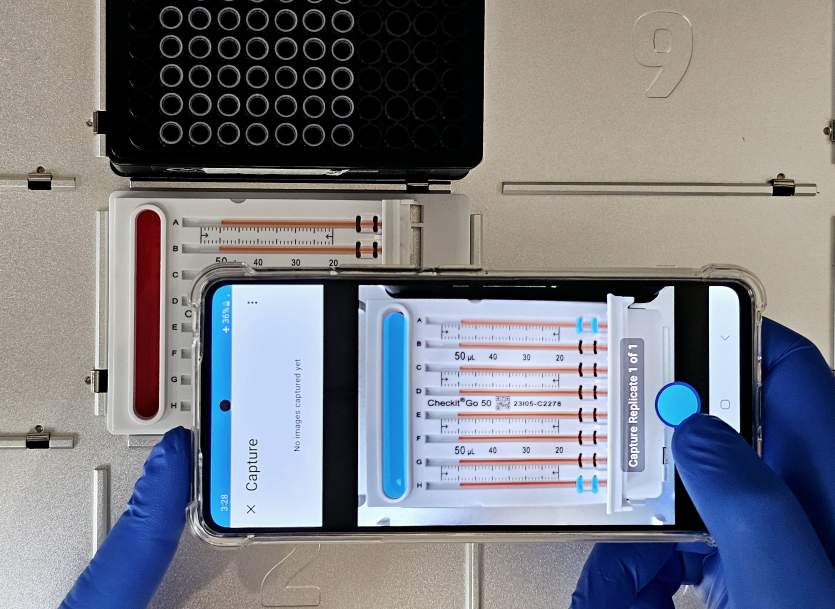

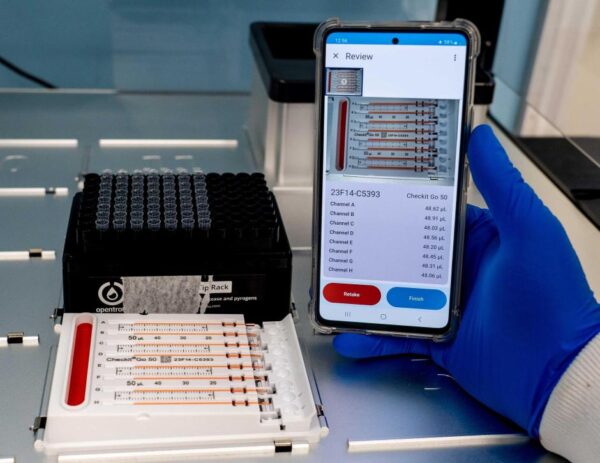

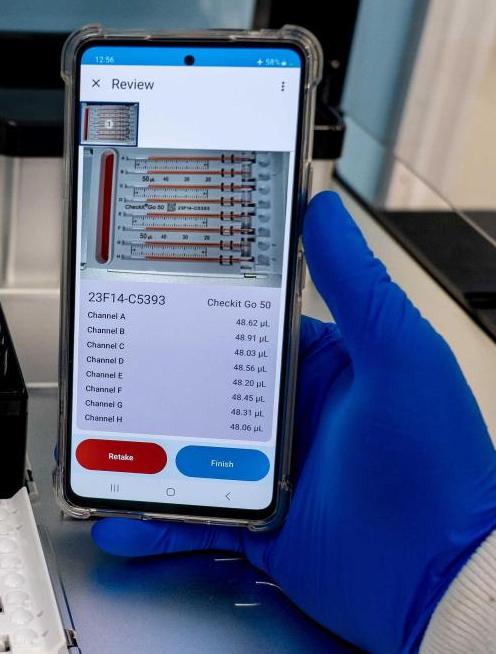

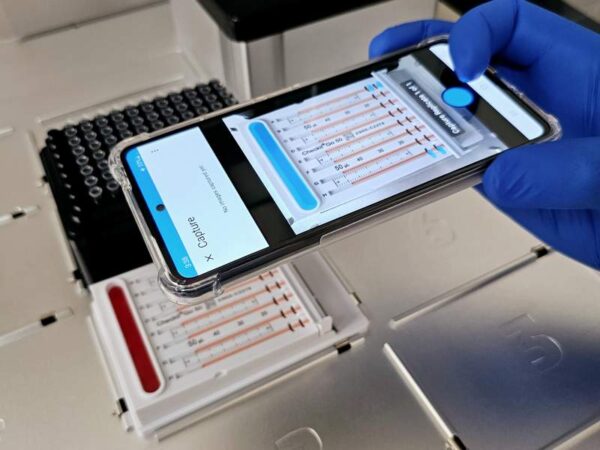

The Checkit Recorder documents the results of Checkit tests of automated liquid handler and multi-channel pipette dispensing. Use it with the Checkit Go. Operation is similar to remotely depositing a check: you capture an image of the Checkit Go. Next the Recorder analyzes the image, providing accurate results. The data can be viewed on the device or downloaded along with images and a report of dispensed volume averages and standard deviations from run to run and from channel to channel. If you set pass fail criteria, it reports the passes and fails, too. You can set up templates with memorized values such as the brand, model, and serial number of the robots, the software, pipette head and tips, and pass fail criteria by volume or percentage. You can also set up users with passwords.

The Checkit Recorder works with our 5, 10, 20 and 50 µL models. However, at this time, it does not work with our new 2 µL model.

Additional information

Dimensions 7 × 4 × 1 in
