Pressure Injection Cell – PC77

$1,625.00$1,643.00

Capillary loader for packing LC/MS columns and loading MS. 2500 psi max. includes a FRIT-KIT, hex wrench and 10 ferrules

Pressure Injection Cell

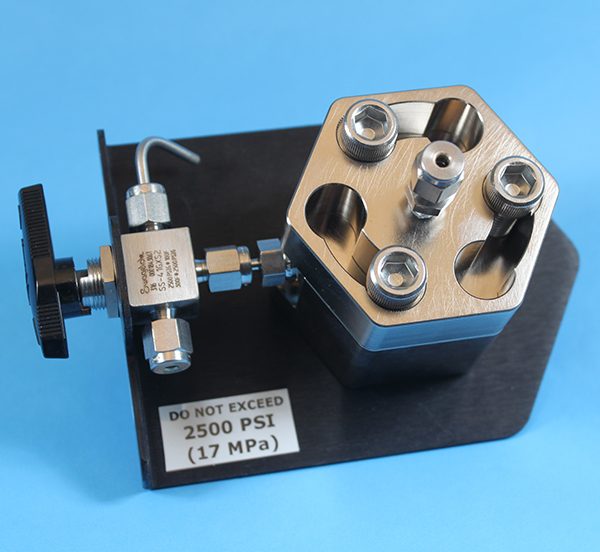

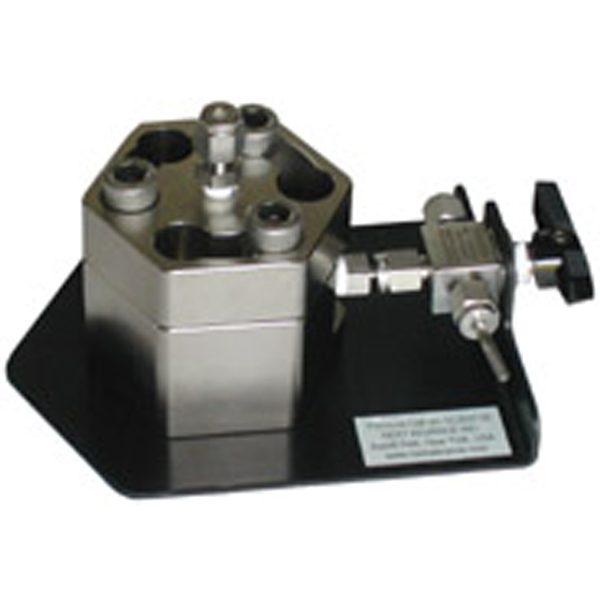

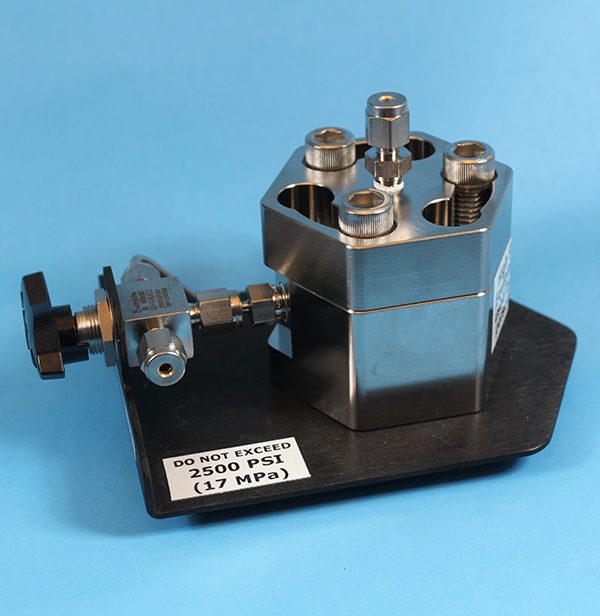

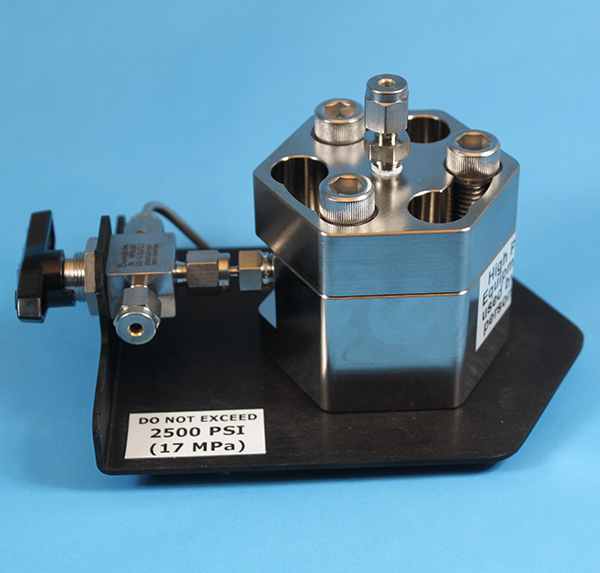

The PC77 Pressure Injection Cell is rated for 2500 psi (17,000 kPa). Includes a three-way valve for convenience. Includes a hex wrench, 10 Ferrules for typical (~363 um external diameter) capillaries, a frit kit, and operator manual. Meets CE.

Optional PACK-KIT Column Packing Hardware Kit available.

Special note for users of metric tubing: If you will be connecting the pressure cell using your own 3 mm OD stainless steel tubing, you will also need to order an adapter (ADPT-3mm1/8 ) for the pressure cell.

If you are ordering our packing kit (PACK-KIT) or tubing (TBNG10), you will be able to use the fitting that is supplied with the instrument. No adapter is required.

Additional information

Weight 2.5 lbs
Dimensions 7.5 × 5.5 × 5.5 in
Body transparency

Maximum pressure

Inlet Tubing Fitting Size

For 1/8 inch tubing, For 3mm tubing (with factory installed adapter)
