Pressure Injection Cell – PC77-MAG


Capillary loader for packing LC/MS columns and loading MS with integrated stir plate. 2500 psi max. includes a FRIT-KIT, hex wrench and 10 ferrules and stir bar.

Pressure Injection Cell – MAG

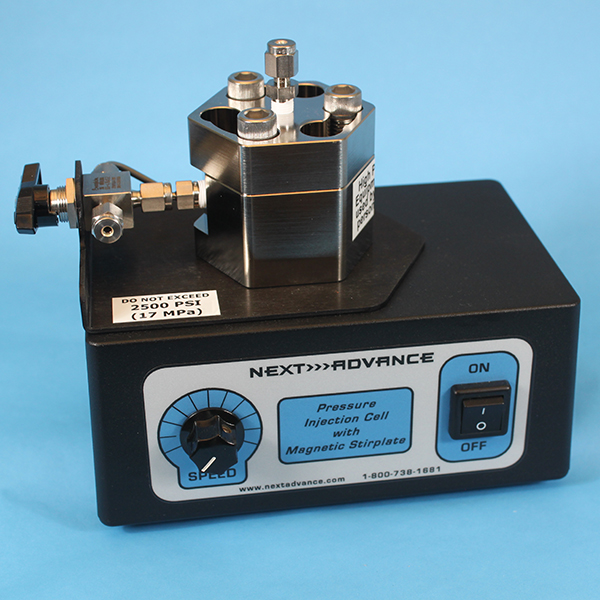

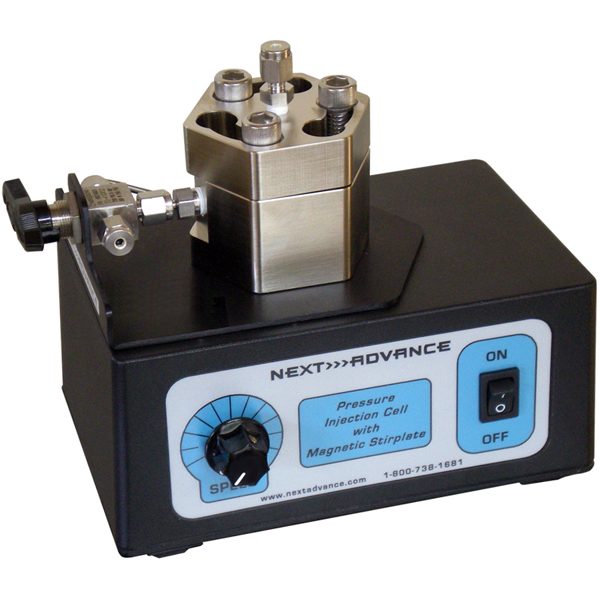

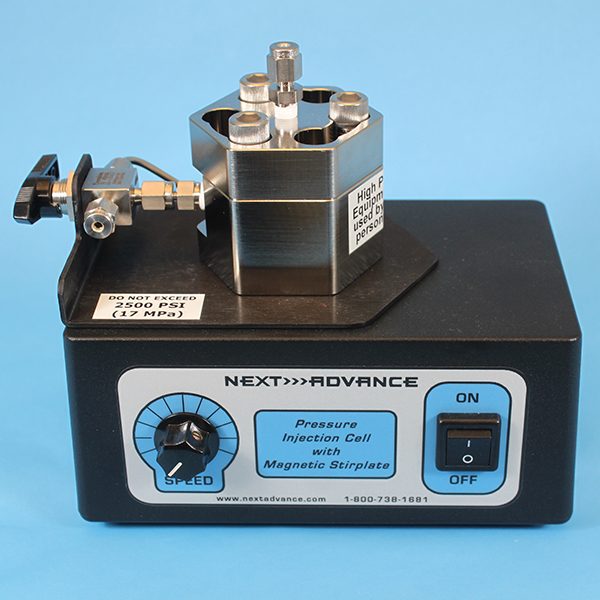

PC77-MAG Pressure injection cell with integrated magnetic stir plate for keeping particles in suspension when packing capillaries. Also includes a 5x2mm stirbar, a hex wrench, 10 Ferrules for typical (~363 um external diameter) capillaries, frit kit, and operator manual. Meets CE.

Optional PACK-KIT Column Packing Hardware Kit available.

Special note for users of metric tubing: If you will be connecting the pressure cell using your own 3 mm OD stainless steel tubing, you will also need to order an adapter (ADPT-3mm1/8 ) for the pressure cell.

If you are ordering our packing kit (PACK-KIT) or tubing (TBNG10), you will be able to use the fitting that is supplied with the instrument. No adapter is required.

Additional information

Weight 5 lbs
Dimensions 9.5 × 7.5 × 7.5 in
