Pressure Injection Cell – PC8500


Capillary loader for packing LC/MS columns and loading MS. 8500 psi max. includes a FRIT-KIT, hex wrench and 10 ferrules

Pressure Injection Cell

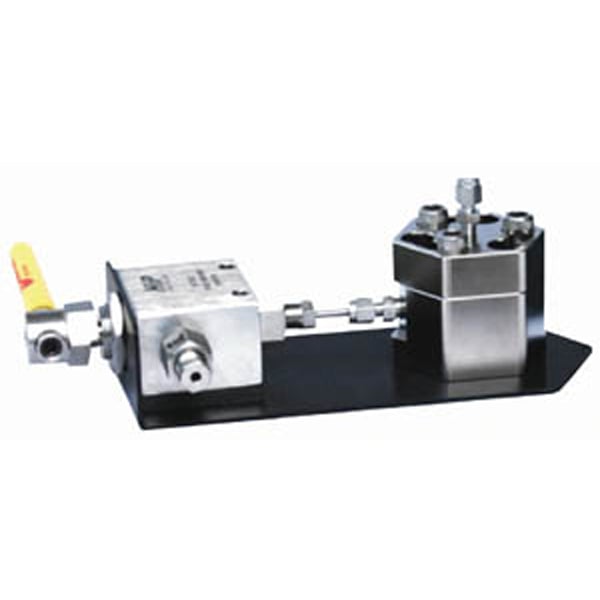

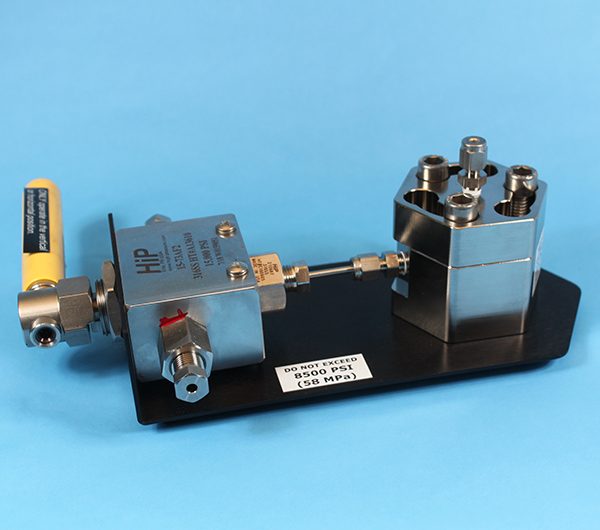

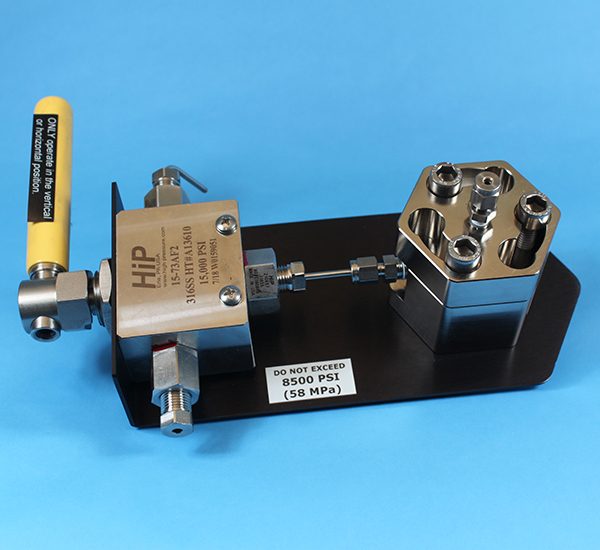

PC8500 Pressure Injection Cell. High pressure version of PC77, rated for 8500 psi (58,000 kPa). Also includes a hex wrench, 10 ferrules for typical (~363 um external diameter) capillaries, frit kit, and operator manual. Meets CE.

Optional PACK-KIT Column Packing Hardware Kit available.

Special note for users of metric tubing: If you will be connecting the pressure cell using your own 3 mm OD stainless steel tubing, you will also need to order an adapter (ADPT-3mm1/8 ) for the pressure cell.

If you are ordering our packing kit (PACK-KIT) or tubing (TBNG10), you will be able to use the fitting that is supplied with the instrument. No adapter is required.

Additional information

Weight 3.6 lbs
Dimensions 9.5 × 7.5 × 7.5 in
