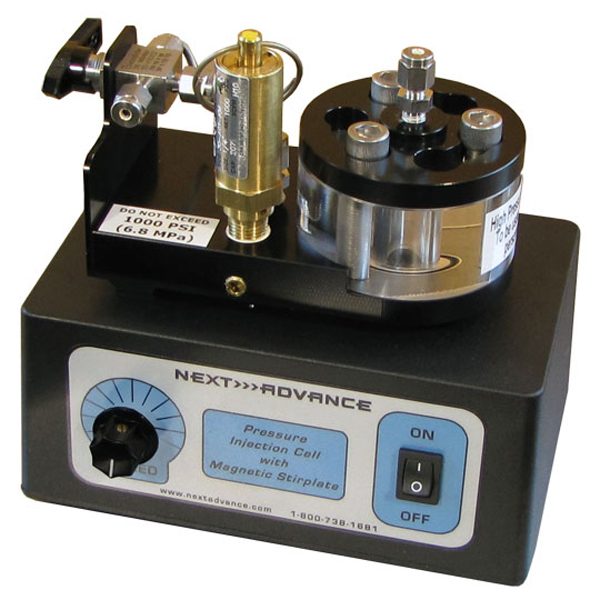

Pressure Injection Cell Clear – PC1000-MAG


Capillary loader with transparent body for packing LC/MS columns and loading MS with integrated stir plate. 1000 psi max. includes a FRIT-KIT, hex wrench and 10 ferrules

Out of stock

Pressure Injection Cell Clear

Look inside while packing your column! The PC1000-MAG has a transparent body, so you can see the level of packing suspension in the vial. Rated for 1000 psi – sufficient for most column packing applications. Includes an integrated magnetic stir plate. Orders include a frit kit, a hex wrench, 10 ferrules for standard 400 micrometer outside diameter capillary, and an owner’s manual. Meets CE.

Optional PACK-KIT Column Packing Hardware Kit available.

Special note for users of metric tubing: If you will be connecting the pressure cell using your own 3 mm OD stainless steel tubing, you will also need to order an adapter (ADPT-3mm1/8 ) for the pressure cell.

If you are ordering our packing kit (PACK-KIT) or tubing (TBNG10), you will be able to use the fitting that is supplied with the instrument. No adapter is required.

Additional information

Weight 6 lbs
Dimensions 9 × 5 × 7 in
