Our RoboRocker family of products comes in a variety of different models to suit your needs. Our reliable 210 series (210, 212, 214) can be trusted to keep your cultures rocking at a steady and consistent pace, and our high-speed 750 series (750, 752) can rock at up to 200 degrees per second! Each series also comes in three different programming levels, which each offer different levels of complexity for your programs.
Looking for some help deciding what RoboRocker is best for you? Check out the tables below to learn more about the features of our different models and programing levels, and find out what fits your needs.
Comparison of RoboRocker™ Programming Levels for Program Features
| RoboRocker 210/750 | RoboRocker 212/752 | RoboRocker 214 | |
|---|---|---|---|
| Program Features Level | basic | standard | advanced |
| Programmable Tilt Angles | 2 – same angle forward and reverse direction | Up to 4 independent tilt angles | Up to 4 independent tilt angles |
| Tilt Rangle | ±30° | ±30° | ±30° |
| Programmable Pauses from 0 (no pause) to 90 minutes | same pause time forward and reverse | Up to 4 independent pause times | Up to 4 independent pause times |
| Program Travel Speed | same travel speed, forward and reverse | Up to 4 independent speeds | Up to 4 independent speeds |
| Stored Programs | none | Up to 3 custom programs | Up to 6 custom programs |
| Very slow travel – hours per degree – to compensate for decreased level of culture medium in reservoir | no | yes | yes |
| Pulsatile Tilting for Pulsatile Flow | no | no | yes |
| Schedule Programs for changing programs at different stages of culture | no | no | yes |
Comparison of RoboRocker Series
| Regular 210 Series (210, 212, 214) | High Speed “Lightning Fast” 750 Series (750, 752) | |
|---|---|---|
| Travel Speed | Minimum: 0.1 deg/sec Maximum: 30 deg/sec | Min.: 0.1 deg/sec Max.: 200 deg/sec |
| Slow Travel Speed not available in the basic models | Range: 1 minute per degree to ultra slow 300 minutes per degree (e.g. 3000 minutes or 50 hours to travel 10 degrees) | |
| Pause Time | Minimum: 0 seconds Maximum: 90 minutes | |
| Load Capacity | 11 lbs (5 kg) | 1 lb (0.5 kg) |
| Platforms and Racks Options (select when ordering the RoboRocker) | Platform 2-level rack 4-level rack | 3-plate holder equivalent to a 1-level rack |
- Power: 24V DC, 60 Watt external power supply.
- Temperature range: 4°C to 40°C (warning: rapid temperature changes may cause condensation and void the warranty).
- Environment: The RoboRocker may be used in a CO2 incubator.
- Mats: Models with platform: Textured neoprene rubber. Plate Rack models do not have rubber mats.
- Weight: 8.5 lb (4 kg)
- Height: Models with platform: 4.75 inches (12 cm) high. Allow clearance room above for samples and optional stacking trays. Models with 2-level rack: 6.5 inches (16 cm) high. Models with 4-level rack: 9.5 inches (24 cm) high.
- Width: Models with platform: 11.5 inches (29 cm) wide. Models with rack: 8 inches (20 cm) wide. Allow clearance room on both sides for travel.
- Depth: Models with platform: 11.5 inches (29 cm) deep. Models with rack: 12.5 inches (32 cm) deep

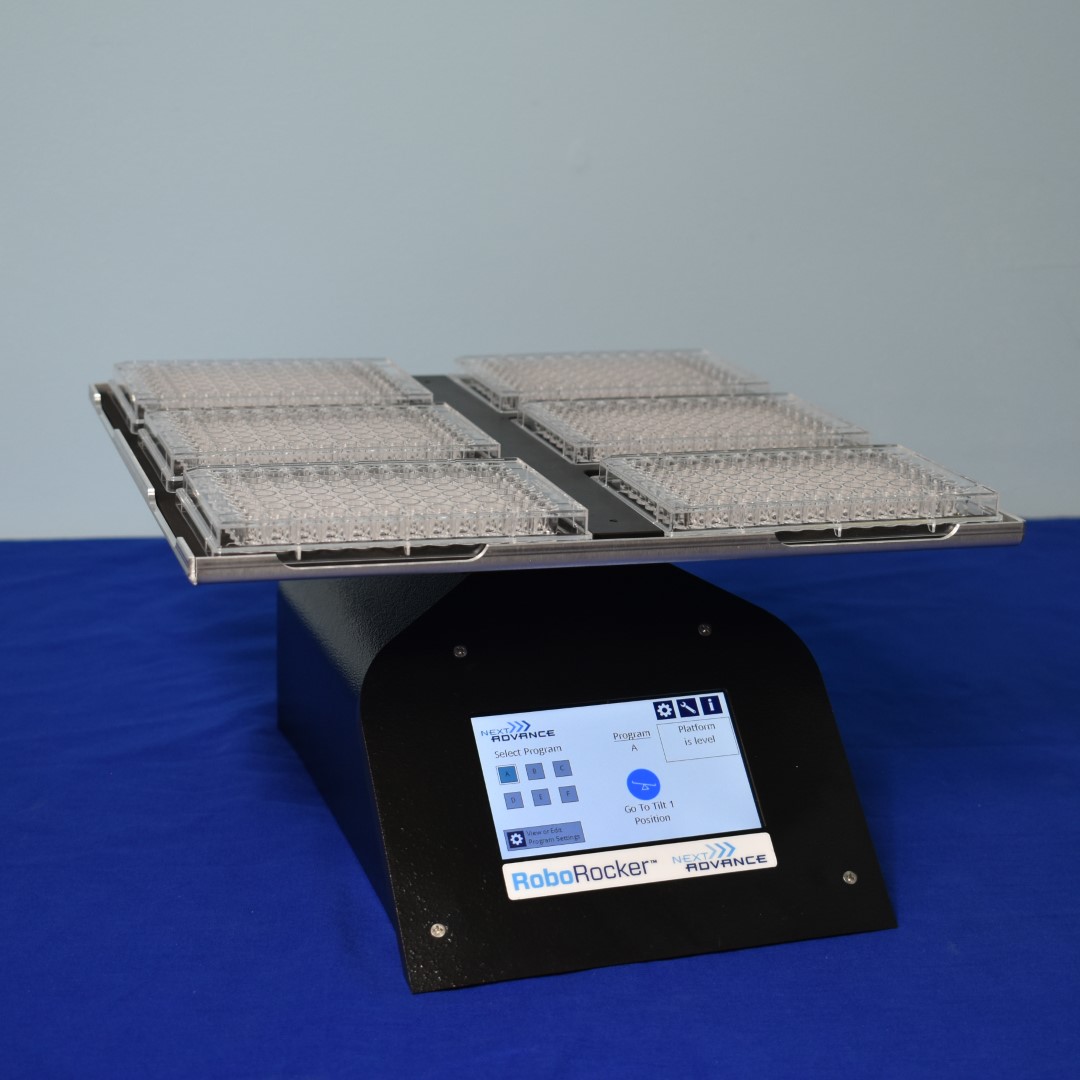

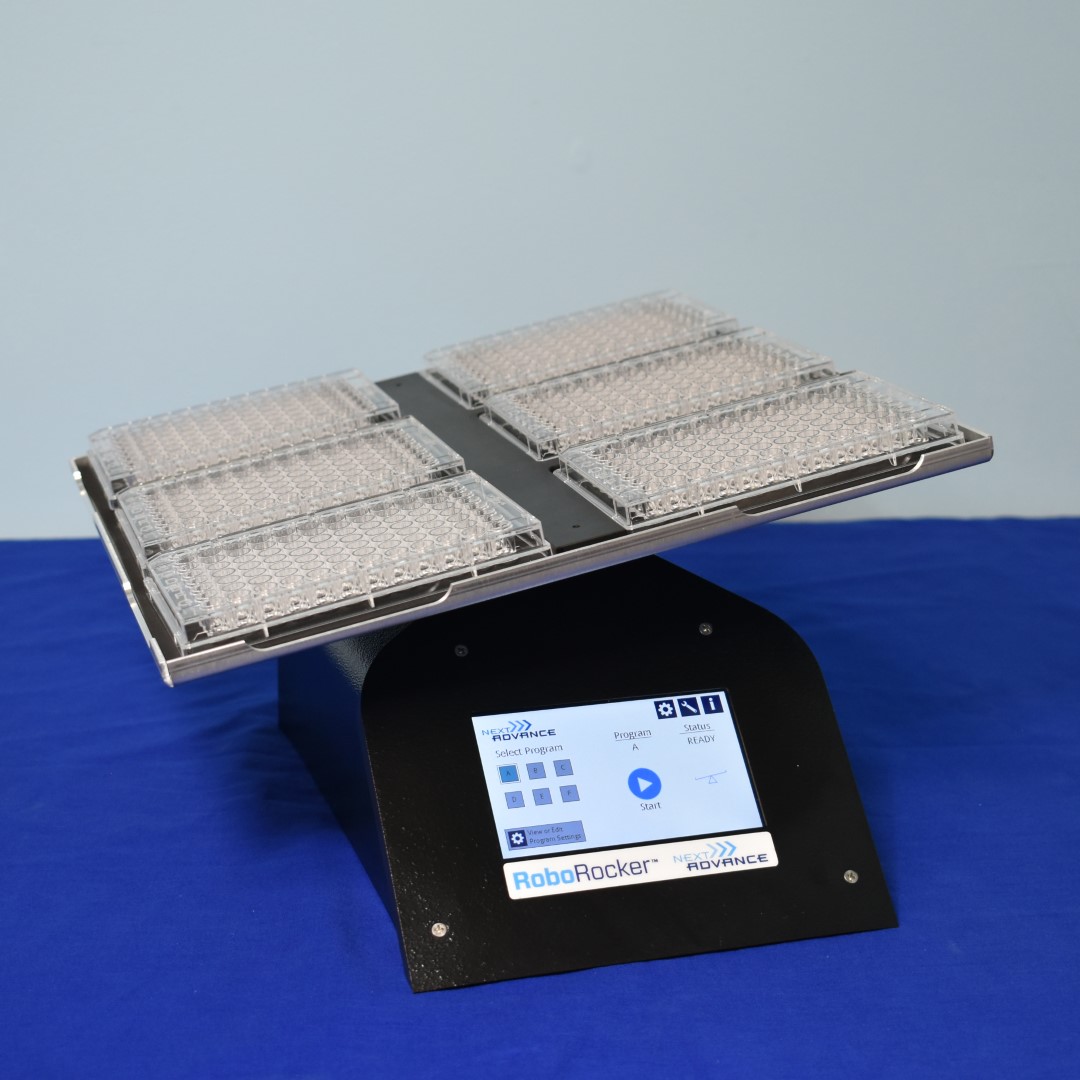

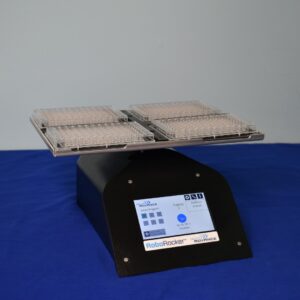

RoboRocker™ Models
-
$2,495.00 – $3,550.00 Select options This product has multiple variants. The options may be chosen on the product page -
$2,895.00 – $3,295.00 Select options This product has multiple variants. The options may be chosen on the product page
RoboRocker™ Stacking Trays
Placing culture plates in the plate rack is very easy. The 4 level plate rack with a capacity for 12 culture plates is shown.
RoboRocker model RR212-RK4 running a standard program.
