Rockers and Shakers

Infinity Rocker

Infinity Rocker™

The Long-Life Laboratory Platform Rocker … 4 Year Warranty and Programmable*


The last rocker you will ever need to buy! The Infinity Rockers are designed with constant, heavy-duty use in mind, and they will last for many years – unlike all those rockers with one-year warranties. Ultra quiet, they are ideal for many applications including: mixing, gel staining and destaining, blotting, cell culture, hybridization, washing, etc…

Three Platform Sizes

Infinity Rockers come in models with: 11 x 14, 8 x 9, and 20 x 16 inch (28 x 36, 20 x 23, and 51 x 41 cm) platforms.

Stacking Trays

Removable Tier-2 stacking trays double the support surface area. The trays just snap onto the platform and their spring loaded legs hold them securely in place.

Triple and Quadruple Deckers

Stack-3 and Stack-4 versions provide 3 or 4 times as much capacity. The 3 or 4 platforms each tilt about their own axis. See examples of ways to customize the Stack-4 rocker.

4 Year Warranty

We offer a 4 year warranty because Infinity Rockers are solidly built in the USA. The rugged construction includes heavy duty chassis and platforms. Long life brushless motors drive the rocking. These rockers are designed to run for many years of continuous use.

Digital Speed Control

The Infinity Rockers have a microcontroller to accurately control the speed. The speed will remain constant, even as heavy items are added or removed from the platform. And the rocking can be paused and resumed by flipping a switch. Rocking speed can be set from 6 rock cycles an hour (0.1 per minute) to 80 per minute in increments of 1 RPM. And rocking can be even slower, or even be stationary with punctuated periods of rocking with custom programs, as described below.

Extremely Quiet Operation

The Infinity Rockers are incredibly quiet due to their high quality motor and vibration isolation mounts inside the unit.

Programmable

We can provide custom rocking programs for your Infinity Rockers upon request at checkout for an additional cost (limitations apply for XL). The platform can be set to pause at a particular angle, vary rocking speed, etc. For example, the platform can move slowly in one direction, pause, and then return quickly. Or it can be set to have very long pauses between cycles, such as rock for just 3 minutes once a day. Several customers use our rockers for microfluidic applications. For applications such as viral transduction or plasmid transfection, you may want short periods of gentle rocking for mixing, separated by 30 minute stationary periods to allow transduction to occur. And rocking can be asymmetric, meaning fast in one direction, and slowly back, such as for mixing microliter volumes to avoid depletion zones during hybridization.

Custom Sizes

Get a rocker that fits your needs! Upon request, rockers can be made to accommodate specific platform sizes and weights.

Rugged Construction

These very sturdy (and quiet!) rockers sport heavy-duty construction. A top grade brushless motor drives the rocking and ensures very long life.

three tiered infinity rocker

Built to last for years and years.

four tiered infinity rocker

Efficient use of bench space.

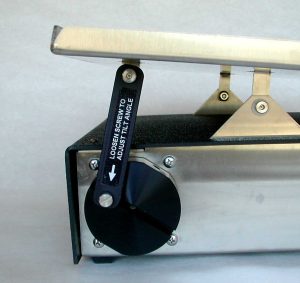

Tilt Angle Adjustment

Loosen the screw on the back of the rocker and slide the linkage toward the center (to decrease the tilt) or perimeter (to increase the tilt) and then tighten the screw.

tilt adjustment on lab rocker

The Infinity Rocker Family


IR101 Infinity Rocker Pro has an 11 inch wide x 14 inch (28 x 36 cm) deep platform. 6-1/2 inches tall.

Double the capacity with the Stacking Tray Pro, ST201


IR102 Infinity Rocker Mini has an 8 inch wide x 9 inch (20 x 23 cm) deep platform. 6-1/2 inches tall.

Double the capacity with the Stacking Tray Mini, ST202


IR103 Infinity Rocker XL has a 20 inch wide x 16 inch (51 x 41 cm) deep platform. 6-1/2 inches tall.

Double the capacity with the Stacking Tray XL, ST203


IR301 Infinity Rocker Stack-3 has three 11 x 14 inch (28 x 36 cm) platforms, 7.5 inches apart. Each platform pivots about its own axis so that the top platform provdes the same controlled conditions as the bottom one. 22 inches high.


IR401 Infinity Rocker Stack-4 has four 11 x 14 inch (28 x 36 cm) platforms, 5 inches apart. Each platform pivots about its own axis so that the top platform provides the same controlled conditions as the bottom one. 22 inches high.  Platforms can be removed or adjusted for different configurations.


IR211 Infinity Rocker Stack-2 Tall has two 11 x 14 inch (28 x 36 cm) platforms, 12+ inches apart. Perfect for rocking tall flasks. Use with the STABILIZER 600 container rack. Each platform pivots about its own axis so that the top platform provides the same controlled conditions as the bottom one. 22 inches high.


Download the Infinity Rocker brochure.


Laboratory Rocker

Next Rocker

Next Rocker

High-Value, Rugged & Quiet Rocker

lab rockers for staining, destaining, mixing, blotting, cell culture, hybridization, washing

Adjustable Tilt Angle

The user can easily adjust the maximum tilt angle, from ±1° to ±18°.

Choose your platform size

Next rockers are available with 8 x 9 or 11 x 14 inch (20 x 23 or 28 x 36 cm) platforms.

Stacking Trays

Double the capacity with Tier-2 stacking trays. They simply snap onto the platform; their spring loaded legs hold them securely in place.

Rugged Construction

These very sturdy (and quiet!) rockers sport heavy-duty construction. A top grade instrument motor drives the rocking and an advanced pulse width modulation circuit controls the rocking speed.

Excellent Value

The simple reliable designs and Next Advance’s efficiency enable these rockers to sell for much less than comparable models from other companies.

Extremely Quiet Operation

There are no quieter rockers on the market. The Next Rockers are incredibly quiet due to their high quality motor and vibration isolation mounts inside the unit.

Risk Free Purchase

All Next Rockers come with a 30 day money back guarantee and a 1 year warranty.


The Next Rocker Family


The NR101 Next Rocker Pro has an 11 inch wide x 14 inch (28 x 36 cm) deep platform. 6-1/2 inches tall. Available in fast speed (4 to 80 cycles/minute) or super slow speed (1 to 20 cycles/minute).

The ST201 stacking tray doubles the capacity of the NR101


The NR102 Next Rocker Mini has an 8 inch wide x 9 inch (20 x 23 cm) deep platform. 6-1/2 inches tall. Available in fast speed (4 to 80 cycles/minute) or super slow speed (1 to 20 cycles/minute).

The ST202 stacking tray doubles the capacity of the NR102



Features

Features

Infinity Rocker
View Models

  • Maximum load is 11 lbs (5 kg)
  • Large easy to read digital display of speed
  • Speed adjustable from 0.1 to 80 cycles per minute, in increments of 1 RPM.
  • Rocking speed remains constant over time. Even if weight is added or removed
  • Unique specialized rocking, such as built-in pauses and asymmetric rocking*
  • Tilt angle adjustable from 1° to 18°
  • Extra large platform available. Platform sizes:
    • Infinity Rocker Pro: 11 x 14 inch (28 x 36 cm)
    • Infinity Rocker Mini: 8 x 9 inch (20 x 23 cm)
    • Infinity Rocker XL: 20 x 16 inch (51 x 41 cm)
    • Infinity Rocker Custom Sizes upon request
  • Platforms have a textured rubber mat
  • Stacking trays double the capacity.
  • Stack-3 and Stack-4 models have 3X and 4X the capacity. Platforms 11 x 14 inch (28 x 36 cm)
  • Platforms of multi-tiered models can be removed and adjusted for different configurations
  • Can use in cold rooms and incubators, 4°C to 40°C (avoid condensation)
  • Resistant to CO2 environments up to 10%.
  • CE/UL certified 12 volt power supply – works with wall outlets worldwide
  • 4 year warranty
  • 30 day money back guarantee
  • Made in the USA

Next Rocker
View Models

  • Maximum load is 11 lbs (5 kg)
  • Tilt angle adjustable from 1° to 18°
  • 2 Sizes of stainless steel platforms with textured rubber mat:
    • Next Rocker Pro: 11 x 14 inch (28 x 36 cm)
    • Next Rocker Mini: 8 x 9 inch (20 x 23 cm)
  • Stacking trays (purchased separately) double the capacity
  • Can use in cold rooms and incubators, 4°C to 60°C (avoid condensation)
  • CE/UL certified 24 volt power supply – works with most wall outlets worldwide
  • High speed (4 to 80 cycles/minute) and super slow speed (1 to 20 cycles/min) available. Extra slow rocking models provide better control at low speeds
  • 1 year warranty
  • 30 day money back guarantee
  • Made in the USA

Models

Platform Rocker Models

PlatformsStacking Tray
(sold separately)
Available Speeds
(cycles/minute)
Max Load
Next Rocker Pro
NR101 Pro
(H & SS models)
11 x 14 in.
(28 x 36 cm)
Tier-2 Stacking Tray Pro
ST201
H: 4 – 80
SS: 1 – 20
11 lb.
(5 kg)
Next Rocker Mini
NR102 Mini
(H & SS models)
8 x 9 in.
(20 x 23 cm)
Tier-2 Stacking Tray Mini
ST202
H: 4 – 80
SS: 1 – 20
11 lb.
(5 kg)
Infinity Rocker™ Pro
IR101 Pro
11 x 14 in.
(28 x 36 cm)
Tier-2 Stacking Tray Pro
ST201
0.1 – 80  &
special programs
11 lb.
(5 kg)
Infinity Rocker™ Mini
IR102 Mini
8 x 9 in.
(20 x 23 cm)
Tier-2 Stacking Tray Mini
ST202
0.1 – 80  &
special programs
11 lb.
(5 kg)
Infinity Rocker™ XL
IR103 XL
20 x 16 in.
(51 x 41 cm)
Tier-2 Stacking Tray XL
ST203
0.1 – 80  &
special programs
11 lb.
(5 kg)
Infinity Rocker™ Stack 3
IR301 Stack-3
3 levels
11 x 14 in.
(28 x 36 cm)
only 22 inches high
Tier-2 Stacking Tray Pro
ST201
0.1 – 80  &
special programs
11 lb.
(5 kg)
Infinity Rocker™ Stack 4
IR401 Stack-4
4 levels
11 x 14 in.
(28 x 36 cm)
only 22 inches high
Tier-2 Stacking Tray Pro
ST201
0.1 – 80  &
special programs
11 lb.
(5 kg)



Power: 24V DC (Next Rocker), 12V DC (Infinity Rocker™)
Tilt Angle: 1 to 18 degrees (all models are adjustable)
Temperature range 4°C to 40°C for Infinity Rocker, 4°C to 60°C for Next Rocker* (warning: rapid temperature changes may cause condensation and void the warranty). The Infinity Rocker may be used in a CO2 incubator.
Mats: Textured neoprene rubber
Do not use the Next Rocker in a CO2 incubator.


Infinity Rockers – Long-life, Digital Speed Control and Custom Programmable


Next Rockers


Stacking Trays and Additional Platform for Multi-Tier Infinity Rockers

Stacking Trays

Stacking Trays and Additional Platforms

stacking tray for rocking shaker

Tier-2 stacking trays are available for all Infinity Rocker models. These rugged trays double the support surface area of single platform rockers. They are constructed of heavy gauge ABS plastic for ruggedness and have a textured neoprene rubber pad.
You can place a stacking tray on a platform, as pictured on an Infinity Rocker Pro, or remove it when desired, without any tools. The spring loaded legs hold the stacking tray in place. There are 4 inches (10 cm) of clearance above the main platform.

You can configure the platforms of your Stack-3 and Stack-4 Infinity Rockers to be at particular heights, and also add an additional platform or remove platforms at several discrete heights.


The Stack-3 in action

Stack-3 Infinity Rocker

The Stack-4 in action

Stack-4 Infinity Rocker

Shakers

Helix™ Orbital Shakers

Helix 150 Orbital Shaker with EZ Clamps

Helix 150 BL Orbital Shaker has a long lasting brushless motor. This model comes with a non-slip mat.  Variable speed range: 10-150 rpm.



FAQs

Rocker and Shaker FAQs

Specifications

Will these rockers work with different voltages (in different countries)?

Yes. The rocker uses 24V DC (Next Rocker) or 12V DC (Infinity Rocker™) supplied by a small external power supply that plugs into a wall outlet. Next Advance will supply the appropriate power supply for the local power and wall outlet configuration.

What is the maximum load?

The rocker can handle 11 lbs. (5 kg).

What is the range for the tilt angle?

The amount that the rocker platform tilts back and forth can be adjusted from as little as +/- 1 degree to as much as +/- 18 degrees.

What is the difference between Infinity Rockers and Next Rockers?

Infinity Rockers and Next Rockers are both rugged, quiet, rockers with lots of power. Infinity Rockers have digital speed control and a digital display of the rocking rate in cycles per minute (cpm). Because Infinity Rocker motors are brushless, i.e. do not have brushes that can wear out, they will last for many years and can be used in a CO2 environment.

What is the rocking rate?

For Infinity Rockers, the rocking rate can be as slow as barely moving to a maximum speed of 80 cycles per minute (160 rocking motions per minute). Next Rockers are available in a regular (high) speed range (H; 4 to 80 cycles per minute) or super slow (SS; 1 to 20 cycles per minute).

What are the Super Slow versions?

The Next Rockers come in standard and super slow versions. For those applications that require slow, smooth rocking, we recommend the super slow (up to about 20 cycles per minute) versions. They provide finer speed control at the lower speeds. The motor in these versions is geared down for slower operation and greater power, just as gears on a bicycle allow for more power at lower speeds.

Can I use these rockers in incubators or cold rooms?

Our rockers can operate in incubators (up to 40°C for Infinity Rockers and up to 60°C for Next Rockers) or cold rooms (down to 4°C) if the temperature is kept constant and the humidity is not excessive. Temperature swings which cause condensation will damage the electronics and void the warranty. In fact, the electronic circuitry includes additional heat sinks to ensure reliable operation at elevated temperatures.

Operation

How do I adjust the tilt angle?

To adjust the angle, use a flat blade screwdriver to loosen the labeled screw on the rear of the instrument, slide the linkage to the desired position, then tighten the screw.

How do I adjust the rocking rate?

You can turn the knob on the front of the instrument to adjust the rocking speed.

Can I clean the rubber mat?

Yes. You can remove the rubber mat from the platform and clean it with soap and water. Let it dry before placing it back on the platform.

×
×
